XLamp® Element LEDs

Extreme Intensity. Precision Color Mixing. Ultra-Compact Design.

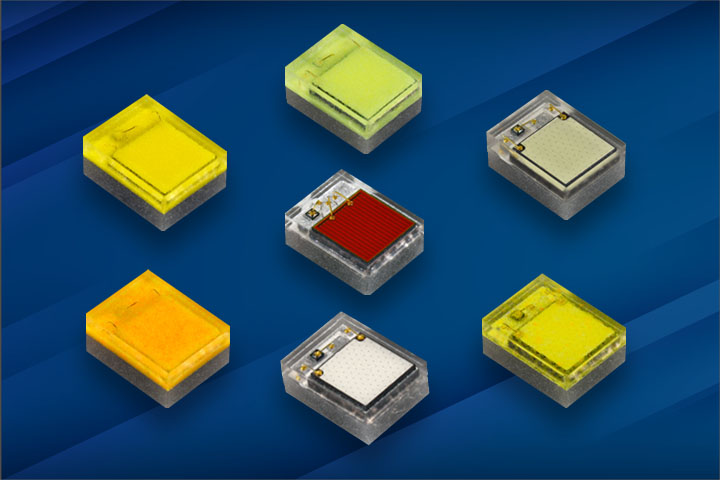

XLamp Element Family LEDs are tiny high-power LEDs that provide the broadest range of color and spectral choices for advanced lighting applications. Designed for high-intensity performance through secondary optics, Element LEDs help lighting manufacturers achieve exceptional color mixing, tighter beam control and higher optical efficiency from an ultra-compact light source.

Minimal distance between LED chip and package edge for tighter optical integration
17 colors with a complete portfolio of white options
No compromise package design: large electrically-isolated thermal pad, uniform design across colors

Latest Innovations

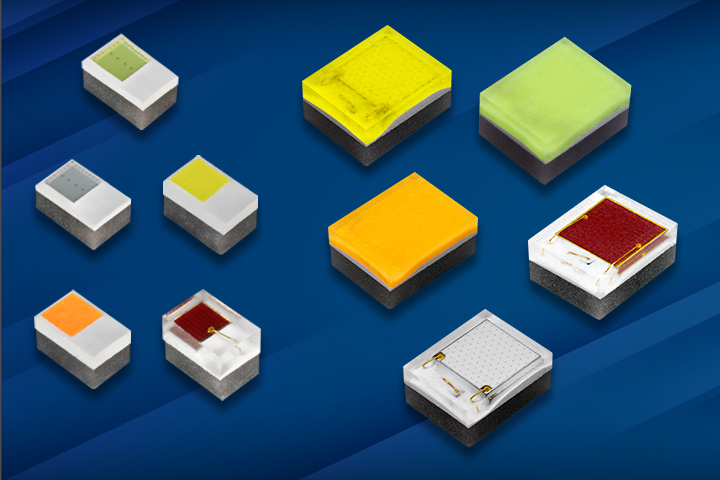

XE-B LEDs extend Cree LED’s flagship XLamp Element family into an even smaller 0.9 x 1.4 mm package
- Up to 60% higher intensity through secondary optics compared to existing LEDs with a larger 1 x 1 mm light emitting surface (LES)

Element Family Feature Sheet

Specifications

View All

Product Type	Product	Product Status	Color	Color Spec Type	Color Min	Color Max	CRI Options	Binning Current (A)	Binning Temp (°C)	Typical Vf	Flux Units	Max Flux	Max Current (A)	Max Power (W)
SMD Ceramic	XE-B	New New	PC Yellow	PC	---	---	---	0.350	25	3.0	Lm	212	1.000	3
SMD Ceramic	XE-B	New New	Red	DWL (nm)	620	630	---	0.350	25	2.2	Lm	135	1.000	2
SMD Ceramic	XE-B	New New	Red-Orange	DWL (nm)	610	620	---	0.350	25	2.2	Lm	193	1.000	2
SMD Ceramic	XE-B	New New	PC Amber	PC	---	---	---	0.350	25	3	Lm	230	1.000	3
SMD Ceramic	XE-B	New New	PC Lime	PC	---	---	---	0.350	25	3	Lm	393	1.000	3
SMD Ceramic	XE-B	New New	Green	DWL (nm)	520	535	---	0.350	25	3	Lm	232	1.000	3
SMD Ceramic	XE-B	New New	Cyan	DWL (nm)	490	510	---	0.350	25	2.9	Lm	178	1.000	3
SMD Ceramic	XE-B	New New	PC Blue	PC	---	---	---	0.350	25	3	Lm	116	1.000	3
SMD Ceramic	XE-B	New New	Blue	DWL (nm)	465	485	---	0.350	25	3	Lm	70	1.000	3
SMD Ceramic	XE-B	New New	Royal	DWL (nm)	450	465	---	0.350	25	3	mW	1377	1.000	3
SMD Ceramic	XE-B	New New	White	CCT (K)	2200	6500	70, 80, 90	0.350	85	2.9	Lm	306	1.000	3
SMD Ceramic	XE-G	Active Active	Red	DWL (nm)	620	630	---	1.000	25	2.4	Lm	372	3.000	9
SMD Ceramic	XE-G	Active Active	White	CCT (K)	2200	6500	70, 80, 90	1.000	85	2.9	Lm	960	3.000	11
SMD Ceramic	XE-G	Active Active	Photo Red	PWL (nm)	650	670	---	1.000	25	2.25	mW	3365	3.000	9
SMD Ceramic	XE-G	Active Active	PC Red	PC	---	---	---	1.000	25	3.0	Lm	118	3.000	11
SMD Ceramic	XE-G	Active Active	Violet	PWL (nm)	400	420	---	1.000	25	3.2	mW	4118	3.000	11
SMD Ceramic	XE-G	Active Active	PC Red-Orange	PC	---	---	---	1.000	25	3.0	Lm	456	3.000	11
SMD Ceramic	XE-G	Active Active	Red-Orange	DWL (nm)	610	620	---	1.000	25	2.4	Lm	458	3.000	9
SMD Ceramic	XE-G	Active Active	PC Amber	PC	---	---	---	1.000	25	3.0	Lm	657	3.000	11
SMD Ceramic	XE-G	Active Active	Amber	DWL (nm)	585	595	---	1.000	25	2.4	Lm	254	3.000	10

Documentation

	Version	Last Updated
XLamp® XE-B Data Sheet	2	14 May 2026
XLamp® XE-G Data Sheet	7F	11 May 2026

	Version	Last Updated
XLamp® White LEDs [Feature Sheet]	45	26 May 2026
Color LED Portfolio [Feature Sheet]	26	26 May 2026
XLamp® Element Family LEDs [Feature Sheet]	3	26 May 2026
LED Products and Application Guide	13	06 Nov 2025

	Version	Last Updated
XLamp XE-G Red-Orange, Red & Photo Red LEDs [RoHS]		31 May 2022
XLamp XE-G Non-Red LEDs [RoHS]		31 May 2022

	Version	Last Updated
XLamp XE-G White, Violet, Royal Blue, Blue, Cyan, Green, PC Colors [REACH]	250	29 Jul 2025
XLamp XE-G Amber, Red-Orange, Red, Photo Red [REACH]	250	29 Jul 2025

	Version	Last Updated
Electrical Design for Controlling Tunable 4-/6‑Channel LED Arrays	0	01 Jul 2024
Cree LED XLamp® Components IES LM-80 Testing Results	95	03 Feb 2026
XLamp® LED Eye Safety	44A	29 Jul 2025
XLamp® Element G (XE-G) LED Design Guide	2A	05 Aug 2025
XLamp® LEDs Solder Joint Reliability Study	4A	29 Jul 2025
JESD51-14 Thermal Resistance Calculation Method	1A	29 Jul 2025
Thermal Management of XLamp® LEDs	5	21 Apr 2023
XLamp® LEDs Chemical Compatibility	9A	16 Jun 2025
XLamp® LEDs Testing and Characterization	3A	29 Jul 2025
Solder-Point Temperature Measurement of XLamp® LEDs	3A	29 Jul 2025
XLamp® XE-G Soldering and Handling	3B	21 Jul 2025
XLamp® LED Electrical Overstress	4A	29 Jul 2025
XLamp® LED Long-Term Lumen Maintenance	4A	29 Jul 2025
XLamp® LED Reliability Overview	9A	04 Dec 2025
Avoidance of Ceramic-Substrate-Based LED Chip Cracking Induced by PCB Bending or Flexing	2A	05 Aug 2025
XLamp® Pick and Place Application Note	3A	29 Jul 2025
Optimizing 4-Channel Color Mixing Systems for Color Rendering	0A	05 Aug 2025

	Version	Last Updated
XE-B PC Amber [Optical Model]	3508
XE-B Green [Optical Model]	3711
XE-B Cyan [Optical Model]	3568
XE-B Blue [Optical Model]	3710
XE-B Royal Blue [Optical Model]	3570
XE-B Red-Orange [Optical Model]	3434
XE-B Red [Optical Model]	3048
XE-B PC Lime [Optical Model]	3840
XE-B PC Blue [Optical Model]	3839
XE-G Red [Optical Model]	2402
XE-G Amber [Optical Model]	2752
XE-G Photo Red [Optical Model]	2647
XE-G Red-Orange [Optical Model]	2748
XE-G Royal Blue [Optical Model]	2403
XE-G PC Yellow [Optical Model]	2745
XE-G PC Red [Optical Model]	2746
XE-G Blue [Optical Model]	2409
XE-G Violet [Optical Model]	2749
XE-G PC Red-Orange [Optical Model]	2750
XE-G PC Mint [Optical Model]	2744

	Version	Last Updated
XE-B White 840 [Optical Model]	3841
XE-B White 750 [Optical Model]	3509
XE-G Warm White [Optical Model]	2791
XE-G Cool White [Optical Model]	2404

	Version	Last Updated
XE-G Red Electrical Model [SPICE]	1	01 Jun 2024
XE-G Royal Electrical Model [SPICE]	1	01 Jun 2024
XE-G Cyan Electrical Model [SPICE]	1	01 Jun 2024
XE-G Photo Red Electrical Model [SPICE]	1	01 Jun 2024
XE-G Amber Electrical Model [SPICE]	1	01 Jun 2024
XE-G PC Amber Electrical Model [SPICE]	1	01 Jun 2024
XE-G PC Cyan Electrical Model [SPICE]	1	01 Jun 2024
XE-G PC Mint Electrical Model [SPICE]	1	01 Jun 2024
XE-G PC Red-Orange Electrical Model [SPICE]	1	01 Jun 2024
XE-G PC Yellow Electrical Model [SPICE]	1	01 Jun 2024
XE-G Violet Electrical Model [SPICE]	1	01 Jun 2024
XE-G Blue Electrical Model [SPICE]	1	01 Jun 2024
XE-G Green Electrical Model [SPICE]	1	01 Jun 2024
XE-G PC Blue Electrical Model [SPICE]	1	01 Jun 2024
XE-G Red Orange Electrical Model [SPICE]	1	01 Jun 2024
3D STEP Models – All XLamp® LEDs		26 May 2026

	Version	Last Updated
CreeLED US Sales Terms & Conditions (Chinese)		31 Oct 2025
CreeLED Shanghai Electronics Limited Sales Terms and Conditions (Chinese)		31 Oct 2025
CreeLED Hong Kong Limited Sales Terms & Conditions (Chinese)		31 Oct 2025
CreeLED Shanghai Electronics Limited – Shenzhen Branch Sales Terms & Conditions (Chinese)		31 Oct 2025
CreeLED US Sales Terms & Conditions (English)		31 Oct 2025
CreeLED Shanghai Electronics Limited Sales Terms and Conditions (English)		31 Oct 2025
CreeLED Hong Kong Limited Sales Terms & Conditions (English)		31 Oct 2025
CreeLED Shanghai Electronics Limited – Shenzhen Branch Sales Terms & Conditions (English)		31 Oct 2025
