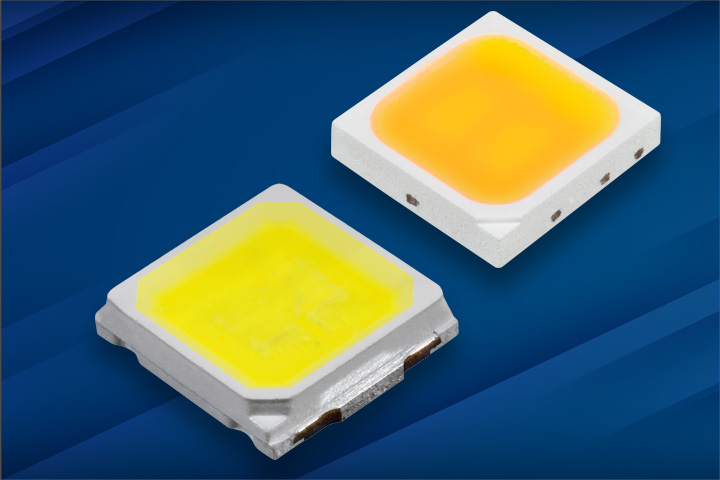

J Series® 3030 LEDs

The high-reliability 3030 package is an excellent choice for high efficacy lighting in outdoor areas, indoor harsh environments and horticulture applications.

J Series 3030 LEDs feature 6500K-2700K CCTs and 70, 80 & 90 CRI options and are available in three different families, with optimizations for efficacy, long-term reliability and value.

  • Jx3030 Standard Family
    • Round LES
    • Excellent value for mainstream lighting applications
  • Jx3030 High Efficacy (HE) Family
    • Square LES with 757-style footprint
    • Reported Lighting L90 lifetime up to 121k hrs with 20k hrs of LM-80 testing
    • Less than 1-step color shift after 16k hrs of LM-80 testing

Latest Innovations

  • JB3030C Family
    • Industry-leading efficacy in a 301B/H-compatible footprint
    • Up to 242 LPW typical or 3.33 PPF/W

Specifications

View All
Product Type Product Data Sheet Product Status Color Voltage Class CCT Min (K) CCT Max (K) CRI Options Binning Current (A) Typ Vf Typ Lm @ 4000K, 70 CRI Typ LPW 4000K, 70 CRI Typ Lm @ 4000K, 80 CRI Typ LPW 4000K, 80 CRI Max Current (A)
SMD White Body
JB3030 HE B Class
Active Active White 3 2700 6500 70, 80, 90 0.065 2.7 38.3 218 36.5 208 0.480
SMD White Body
JB3030 HE D Class
Active Active White 3 2700 6500 70, 80, 90 0.065 2.79 37.9 209 36.2 200 0.240
SMD White Body
JB3030 P Class
Active Active White 3 2700 6500 70, 80, 90 0.065 2.81 35.7 195 33.8 185 0.240
SMD White Body
JB3030C E Class
New New White 3 2700 6500 70, 80, 90 0.055 2.66 35.4 242 33.4 228 0.240
SMD White Body
JB3030C F Class
New New White 3 2700 6500 70, 80, 90 0.055 2.67 34.1 232 32.3 220 0.240
SMD White Body
JK3030 HE B Class
Active Active White 6 2700 6500 70, 80, 90 0.150 6 160 178 153 170 0.240
SMD White Body
JK3030 P Class
Active Active White 3 2700 6500 70, 80, 90 0.350 3.15 164 149 154 140 0.400
SMD White Body
JK3030 P Class
Active Active White 6 2200 6500 70, 80, 90 0.150 6.14 159 173 148.5 161 0.240
