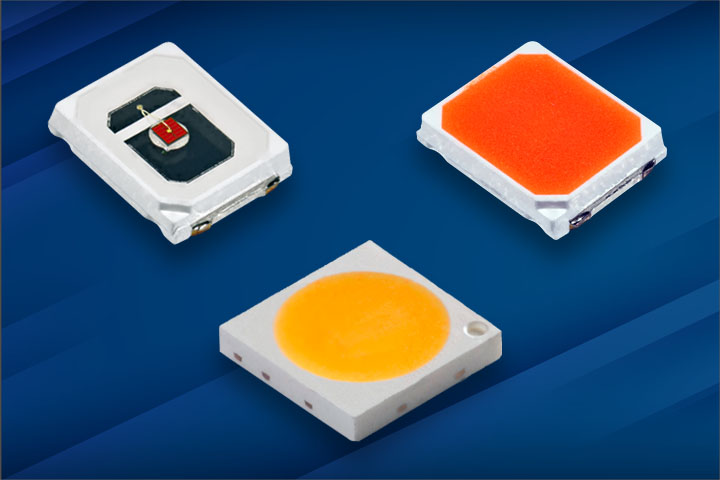

J Series® LEDs

J Series LEDs provide excellent value for general and specialty lighting applications in the industry’s most common LED package sizes. Leveraging Cree LED’s expertise, J Series LEDs deliver top performance and leading reliability together with Cree LED’s renowned sales channels, support and customer service. Unlike other suppliers, Cree LED provides clear typical light output and voltage specifications for all J Series LEDs.

  • Common footprints: 2835, 3030, 5050
  • 6500K – 2700K CCTs on every J Series LED
  • 70, 80, 90 CRI on almost every J Series LED
  • Cree LED’s top-tier global IP indemnification

Specifications

Product Type Product Family Product Product Page Data Sheet Product Status Color Voltage Class Optical Characteristics Color Spec Type Color Min Color Max CRI Options Max Current (A) Max Power (W)
SMD White Body J Series® 2835 LEDs
JB2835 W Class
5.53 MB Active White 3 --- CCT (K) 2200 6500 80, 90 0.150 0.5
SMD White Body J Series® 2835 LEDs
JB2835B G Class
5.53 MB Active White 3 --- CCT (K) 2200 6500 70, 80, 90 0.480 2
SMD White Body J Series® 2835 LEDs
JB2835B J Class
5.53 MB Active White 3 --- CCT (K) 2700 6500 70, 80, 90 0.480 2
SMD White Body J Series® 2835 LEDs
JB2835B J Class PD
4.92 MB Active White 3 Precision Dimming CCT (K) 2700 6500 80, 90 0.480 2
SMD White Body J Series® 3030 LEDs
JB3030 HE B Class
4.16 MB Active White 3 --- CCT (K) 2700 6500 70, 80, 90 0.480 2
SMD White Body J Series® 3030 LEDs
JB3030 HE D Class
4.16 MB Active White 3 --- CCT (K) 2700 6500 70, 80, 90 0.240 0.8
SMD White Body J Series® 3030 LEDs
JB3030 P Class
4.91 MB Active White 3 --- CCT (K) 2700 6500 70, 80, 90 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Royal 3 --- DWL (nm) 450 460 --- 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Blue 3 --- DWL (nm) 470 480 --- 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Cyan 3 --- DWL (nm) 495 510 --- 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Green 3 --- DWL (nm) 520 530 --- 0.240 0.7
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New PC Lime 3 --- PC --- --- --- 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New PC Mint 3 --- PC --- --- --- 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Amber 3 --- DWL (nm) 585 595 --- 0.250 0.7
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New PC Amber 3 --- PC --- --- --- 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Red-Orange 3 --- DWL (nm) 610 620 --- 0.240 0.6
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New PC Red-Orange 3 --- PC --- --- --- 0.240 0.8
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Red 3 --- DWL (nm) 620 630 --- 0.250 0.6
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Photo Red 3 --- PWL (nm) 650 670 --- 0.250 0.6
SMD White Body J Series® 2835 LEDs
JE2835
4.7 MB New Far Red 3 --- PWL (nm) 720 740 --- 0.250 0.6
