XLamp® XQ-E LEDs

May 18, 2023

Higher max current & more color options for Cree LED’s smallest XLamp package

The XLamp® XQ-E LEDs are available in two versions: high density and high intensity. The XQ-E High Density LED enables lighting manufacturers to significantly reduce the size and total cost of their LED luminaires versus similar performance 3.5-mm footprint LEDs, without sacrificing lumen output, efficacy or reliability. The XQ-E High Intensity LED uses an innovative primary optic design optimized to deliver maximum candela, especially through narrow-beam secondary optics. The XQ-E’s combination of optical symmetry, consistent design across all configurations and tiny 1.6 mm X 1.6 mm footprint simplifies manufacturing and design while providing excellent color mixing.

Features

  • Smallest lighting class LED: 1.6 x 1.6 mm
  • Available in high‑density and high‑intensity versions for design flexibility
  • XQ-E high-intensity LED is optimized to deliver maximum candela through secondary optics
  • Available in 70, 80 & 90 CRI White, Royal Blue, Blue, PC Blue, Cyan, PC Cyan, Green, PC Lime, PC Amber, Red-Orange, Red & High Efficiency (HE) Photo Red
  • Maximum drive current: 1.5 A
  • Reflow solderable (JEDEC J-STD‑020C compatible)
  • Unlimited floor life at ≤ 30°C/85% RH
  • RoHS and REACH compliant
  • UL recognized component (E349212)

Optimized for Specialty Lighting Applications

  • Architectural
  • Entertainment
  • Aftermarket Auto/Emergency Vehicle

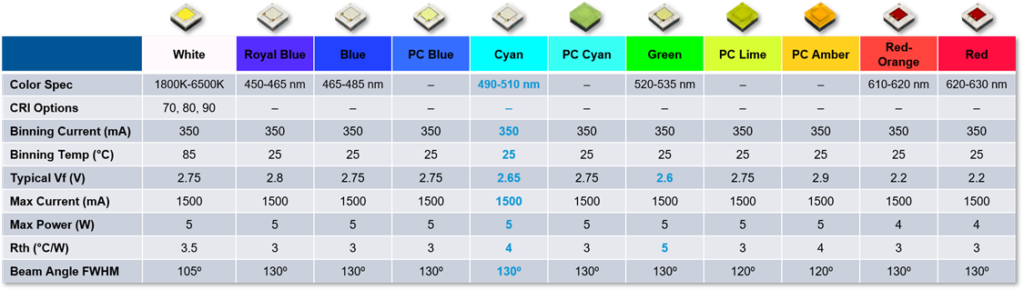

XLamp® XQ-E High Intensity LEDs Characteristics & Features

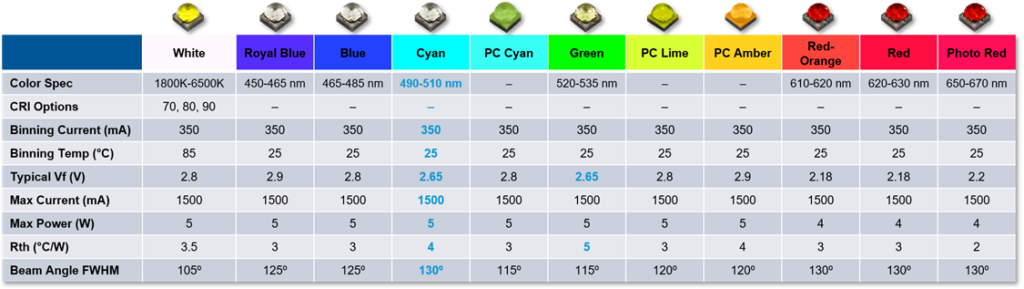

XLamp® XQ-E High Density LEDs Characteristics & Features

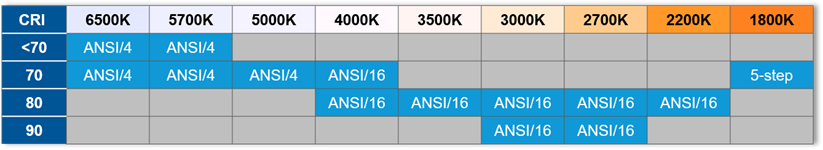

Available in 70, 80 & 90 CRI

Product samples are available now and production quantities are available with standard lead times.

Get technical details and product selector for XLamp® XQ-E: https://www.cree-led.com/products/leds/xlamp/xd-xq/
