XLamp® XE-G LEDs

July 31, 2024

Enhance your lighting designs with our innovative color-mixing LEDs

Cree LED has introduced significant performance improvements for XLamp® XE-G LEDs, its flagship color LED product line. With a 20% efficiency increase for RGBW (Red/Green/Blue/White) color-mixing systems and over a 10% efficiency boost for most of the 18 available colors, these LEDs are ideal for next generation architectural and entertainment installations.

  • 1.6 x 2.05 mm package with a consistent 3A max current rating across all colors
  • Largest selection of colors in the same package in the LED industry
  • New levels of spectral control for general and specialty lighting applications

Brighter XLamp XE-G LEDs

Available in 18 different colors, XE-G LEDs give lighting manufacturers unprecedented flexibility to optimize and dynamically control their product’s light output properties. With the largest number of colors available in the same package in the LED industry, these brighter LEDs deliver a breakthrough solution for color-mixing lighting applications that demand high light output and full spectral control.

Our no-compromise XE-G LED package design features:

  • Minimal spacing: Smallest possible distance between the LED chip and the edge of the package, allowing for close placement and easy combination with secondary optics
  • Large, electrically isolated thermal pad: Supports advanced PCBs, providing a direct thermal path from the LED to the heat sink. XE-G LEDs are designed for maximum current, ensuring efficient heat dissipation and peak performance
  • ESD protection: Ensures durability and reliability
  • Consistent optical source: Delivers uniform light control across all colors, simplifying customer applications
  • Uniform package design: Shared design characteristics across all colors make integration seamless

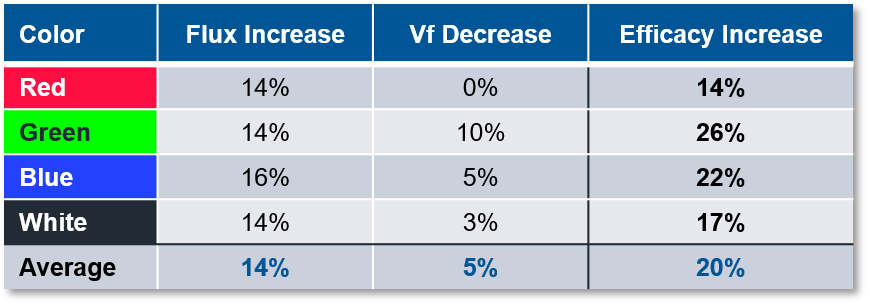

XLamp® XE-G LEDs: 20% Efficacy Increase for RGBW

Improved performance XE-G LEDs deliver a 20% increase in average efficacy for RGBW designs, thanks to a combination of higher flux & lower Vf.

Targeted Applications

Optimized for directional lighting applications that benefit from multi-color LED designs.

  • Indoor directional
  • Architectural
  • Entertainment

Product Resources
Brighter XLamp® XE-G LEDs Press Release
XLamp® XE-G LED Product Page
XLamp® XE-G LED Data Sheet
XLamp® XE-G LEDs Feature Sheet
XLamp® XE-G LEDs Design Guide
Optimizing 4-Channel Color Mixing Systems for Color Rendering Application Note
