J Series^® 7070 LEDs

J Series^® 7070 LEDs deliver excellent value & LPW

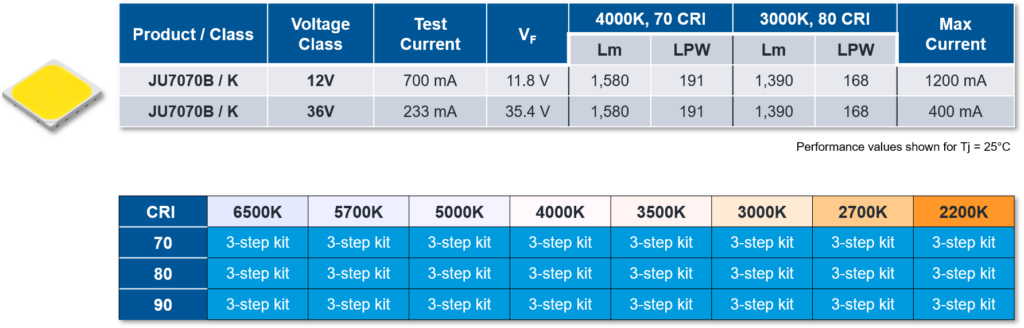

The new J Series JU7070B LEDs offer excellent value and efficacy for lighting applications with lower optical control requirements, such as outdoor area lighting, flood lighting, landscaping and indoor downlighting. Available in 12V and 36V configurations with CCTs ranging from 6500K to 2200K and CRI options of 70, 80 and 90 minimum, JU7070B LEDs can meet the requirements of almost any lighting project.

Ideal for Lighting Applications with Low Optical Control Requirements

• One 7070 LED can replace many mid-power LEDs, making luminaire design less complex
• Works for all lighting applications
• Optimized for general lighting
  • Outdoor Area & Flood
  • Outdoor Landscape
  • Indoor Downlight

J Series^® 7070 LEDs

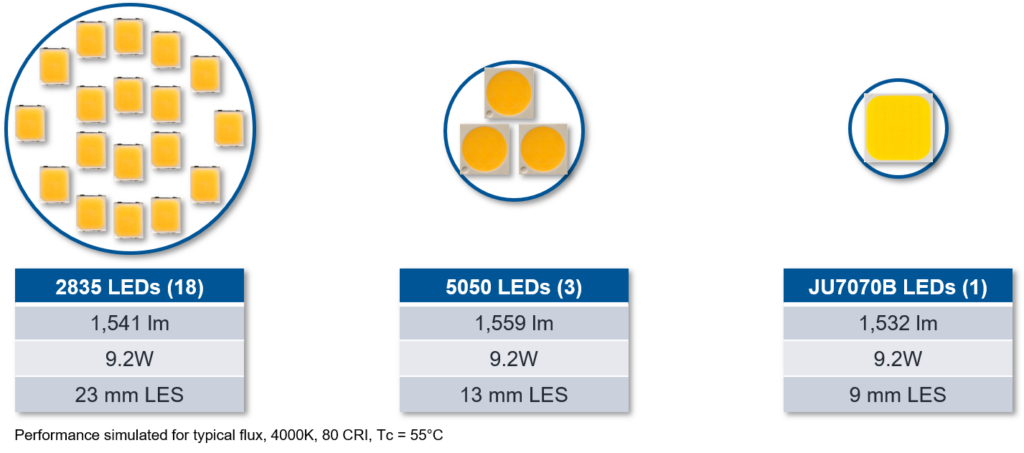

With a maximum light output of over 2,000 lumens, a single JU7070B LED can easily replace 18 2835 LEDs or 3 5050 LEDs in a luminaire without any drop in efficacy or increase in power consumption. This reduction in the number of LEDs allows for the use of smaller, less expensive optics, as well as lower PCB and part placement costs.

J Series^® 7070 LEDs: Reduced System Complexity & Cost

Samples of JU7070B LEDs are available now and production orders are shipping with standard lead times. JU7070B LEDs have LM-80 data sets available with 17,000 hours of duration to support immediate qualification for bids and rebates.

Product Resources
J Series^® 7070 LEDs Product Selector
J Series^® 7070 LEDs Data Sheet
J Series^® LEDs Feature Sheet
